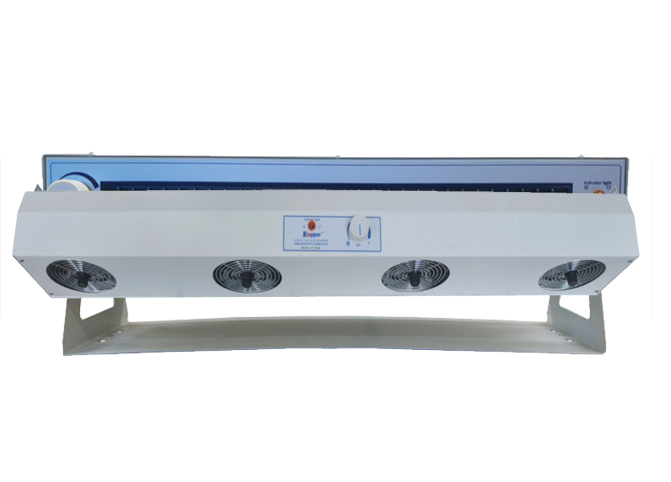

KP1004A Suspended four-head ion fan
Model：KP1004A
application area
Product overview
KP1004A suspended four-head ion fan is a static elimination device developed and produced by Kapal Company to eliminate static electricity on the surface of objects.
KP1004A suspended four-head ion fan can generate a large amount of airflow with positive and negative charges, which can neutralize the charges on objects. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. purpose of static electricity.
The KP1004A suspended four-head ion fan is provided with wind power by four small fans, and the wind power can be adjusted within a wide range by the speed control switch.
KP1004A suspended four-head ion fan is widely used in pharmaceutical manufacturing and assembly, electronic production and packaging, LED assembly line, semiconductor assembly production line and other industries.
Product features
* Quickly eliminate static electricity.
* The ion airflow covers a large area.
* With ionization indicator.
* There is a special ion emission needle cleaner.
* The use of hanging installation can save space.
* The fan has a good grounding protection function.
* The fan has the function of selecting heating air.
Technical parameter
Input voltage | 220V/50Hz or 110V/60Hz |
The output voltage | AC 5.6KV |
power | 50W |
Ion balance | ≤|±10V|（300mm from the test center in front of the fan） |
Power down time | ≤2S（300mm from the test center in front of the fan） |
effective coverage | 500×1200mm |
Operating temperature | 0℃-50℃ |
Working humidity | ＜75% |
Air volume | 160-330CFM |
noise | 50-65dB |
Ozone concentration | ≤ 0.03 ppm （出風(fēng)口前中心150mm處） |
Gross weight | About 8.8kg |
Dimensions | 1100mm(L)*170mm(W)*125mm(H) |
surface | electrostatic spraying |
Test result
Test Conditions | |||
Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃ | |||
distance | 300mm | 600mm | |
Neutralization time | just | 1.0s | 1.7s |
burden | 1.0s | 1.8s | |
residual voltage | just | +5v | +9v |
burden | -8v | -9v | |
* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.
* Tested according to IEC-61340-5-1 A·6.
* Tested data may vary due to changes in ambient temperature and humidity.
